Product Description
Performance
Lightweight with
Impressive Power
Efficient
Up to 55% max overall efficiency
3 HP
Perfect for all sorts of light duty
9 KM/H
Max speed to drive a 12 ft boat with 150 kg load
Portable Electric Outboard
Spirit 1.0 Plus has industry-leading performance, reliability and noise control.
Performance
3 HP
Equivalent
Propulsive Power
55 dB
Max Noise
The Spirit 1.0 Plus easily matches a 3-hp petrol outboard can, and provides more than sufficient propulsion for a 10 ft tender, or can work as an auxiliary power for a daysailer of up to 1.5 tonnes
Maintenance
Free
Range
More Fun on the Water
75 Min
Running time at full speed with one battery
22 Miles
Range at economical speed with one battery
1 Min
Effortless battery replacement

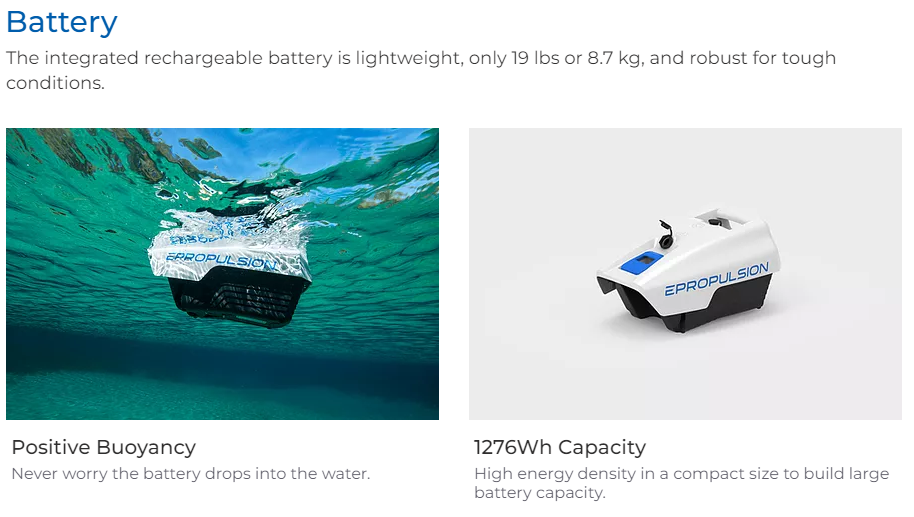

Battery
Superb Longevity for Every Ride
Advanced BMS
Safety comes first: includes six protection features
1276 Wh
A great capacity of 24 Li-Po cells
Floatable
Don’t worry any overboard accidents
The Spirit battery satisfies the IP67 protection standard and operates in any conditions. It’s lightweight and compact, but contains plenty of energy. Weighing in at just 8.8kg, it can also float!
Reliability
Robust Design Built to Last
Maintenance-Free
Save time at work and spend more time on the water
2,000 hrs in testing
The most rigorous testing of continuous operation ensures a robust design
Direct Drive
The amount of moving parts is reduced tremendously, including gear box
Reliability
Robust Design Built to Last
Maintenance-Free
Save time at work and spend more time on the water
2,000 hrs in testing
The most rigorous testing of continuous operation ensures a robust design
Direct Drive
The amount of moving parts is reduced tremendously, including gear box
The Spirit 1.0 Plus is designed for portability. It’s compact, lightweight and easily stored in our customized storage bags. The installing and uninstalling are hassle-free.
Cleaness
Harmless to Health and Environment
No Fuel Leak
Leakage is quite common with a petrol outboard - not with the Spirit 1,0.
Exhaust-Free
You won’t breathe in any engine exhaust fumes
Less Carbon Emissions
Reduce your carbon emissions and protect the environment
Spirit 1.0
Specs
Sub-Model
Shaft Type
3 hp
10.4 kg / 23 lbs
8.7 kg / 19.2 lbs
1 kW
Input Power
Equivalent Horsepower
Motor Weight
Battery Weight
Battery Capacity
Control
Tiller Control
1276 Wh
Running Time (Economical Speed)
Running Time (Full Speed)
Shaft Length
Warranty*
1 hr 15 min
S1-0000-X1
52.5 cm / 20.7 inches
5 hr
2 years, basic motor
2 years, battery
(Non-commercial use only)
Spirit 1.0
Specs
Sub-Model
Shaft Type
3 hp
10.6 kg / 23.4 lbs
8.7 kg / 19.2 lbs
1 kW
Input Power
Equivalent Horsepower
Motor Weight
Battery Weight
Battery Capacity
Control
Tiller Control
1276 Wh
Running Time (Full Speed)
Shaft Length
Warranty*
1 hr 15 min
S1-0000-S1
62.5 cm / 24.6 inches
5 hr
2 years, basic motor
2 years, battery
(Non-commercial use only)
Spirit 1.0
Specs
