Epropulsion
Spirit 1.0 Evo Longshaft w/o Battery
- SKU:
- SE-1111-L0
- MPN:
- 40166
- Weight:
- 60.00 LBS
- Shipping:
- $149.00 (Fixed Shipping Cost)
- NOTE:
- Battery and steering system not included
Description
Please note the battery and the steering system are sold seperatly.

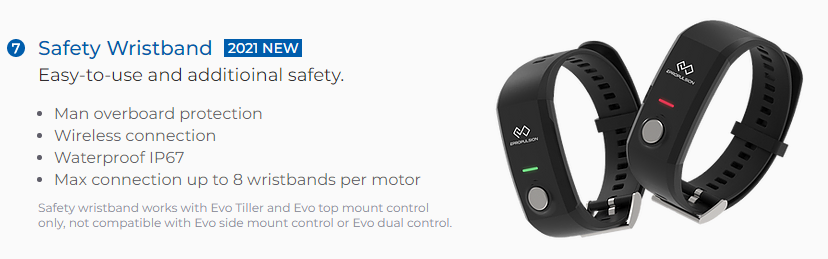

For additional safety you can get your safety wristband
Don't know which shaft is right for you? Click here for a quick guide.
Specs
|
Spirit 1.0 Evo
|
Spirit 1.0 Evo Remote
|
|
|---|---|---|
|
Power
|
1 kW (3HP equivalent)
|
1 kW (3HP equivalent)
|
|
Standard Battery
|
Spirit Battery Plus, 1276 Wh li-ion polymer
|
Spirit Battery Plus, 1276 Wh li-ion polymer
|
|
Input Voltage
|
39V - 60V
|
39V - 60V
|
|
Motor Weight*
|
11.3 kg / 24.9 lbs
|
10.6 kg / 23.4 lbs
|
|
Battery Weight
|
8.7 kg / 19.2 lbs
|
8.7 kg / 19.2 lbs
|
|
Standard Charging
|
8.5 Hrs
|
8.5 Hrs
|
|
Fast Charging
|
3.5 Hrs
|
3.5 Hrs
|
|

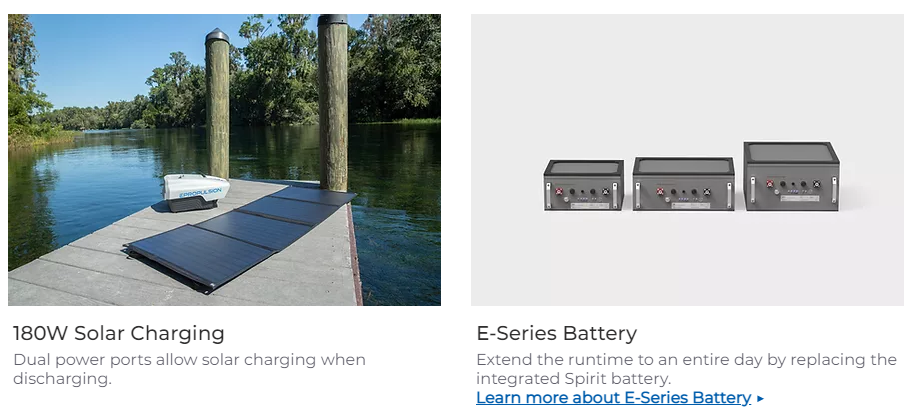

External Battery
|
Yes, and E-Series Battery recommended
|
Yes, and E-Series Battery recommended
|
|
Propeller
|
11″ × 5.8″ 2-blade composite propeller
|
11″ × 5.8″ 2-blade composite propeller
|
|
Trim / Tilt Angle
|
0°, 7°, 14°, 21° / 85°
|
0°, 7°, 14°, 21° / 85°
|
|
Shaft Length
|
Short, Long
|
Short, Long
|
|
Control
|
Evo Tiller
|
Evo Top Mount Control / Evo Side Mount Control / Evo Dual Remote Control
|
|

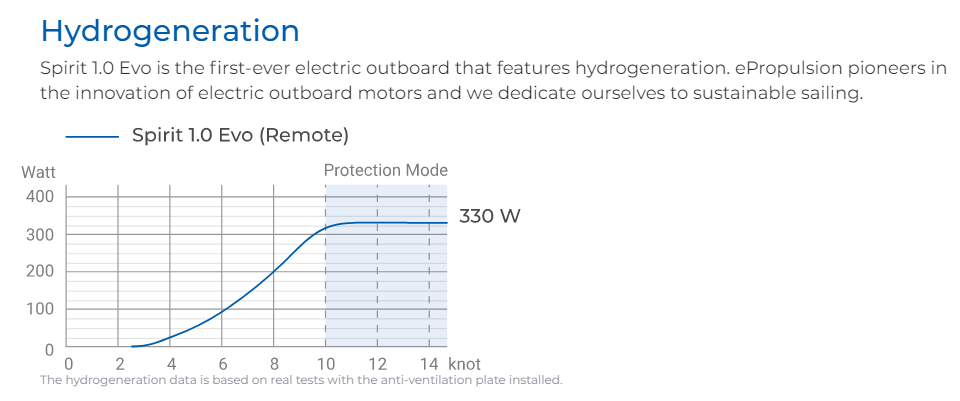

Hydrogeneration
|
Yes
|
Yes
|
|
Motor
|
Brushless DC motor
|
Brushless DC motor
|
|
Direct Drive
|
Yes
|
Yes
|
|
Maintenance-Free
|
Yes
|
Yes
|
*The weight is measured with the short shaft version.
1 Review
-
SPIRIT 1.0 EVO LONGSHAFT W/O BATTERY
This is a great motor, I was worried that my sailboat would be too heavy for it to get me out of trouble in a pinch but that has proved to not be an issue. I can pick it up with one hand after removing the battery and easily stow it in the cabin. Liquid surf was very interactive and a pleasure to do business with. Another concern I had was being worried that the wireless controller would fail me at an inopportune time but that has not happened. Everything works perfect so far and I am very happy. Of course delivery lead times are still a bit disconcerting but i am glad I hung in there, It was worth the wait.
