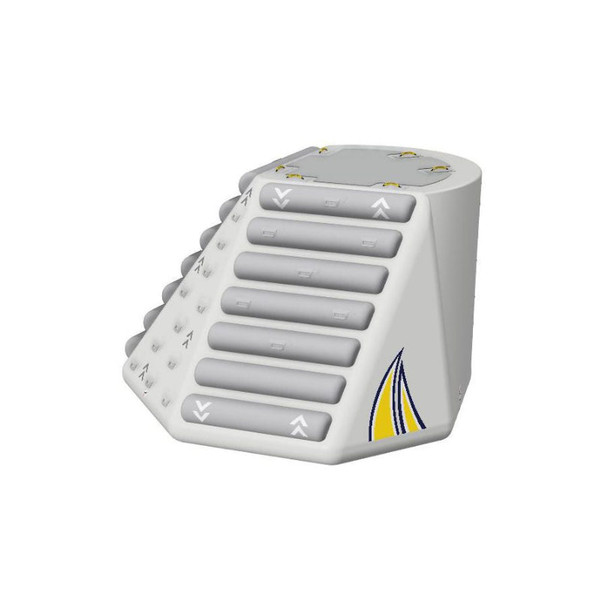

Hammer

One step down in size from the Anvil, this significant corner jump feature still offers plenty of excitement. Two novice up-down climbing routes utilize Tritex material for traction and cooling effects. One massive platform at 8Õ H (2.44 m) provides the perfect jump-off zone. Avid climbers ascend from the water with an advanced climbing wall from the inside corner. Ideally positioned as a corner on Ring or Serpentine parks, this item can also be used as a feature or stand-alone. Connects to any park on one or two sides using our Interlock connection system.
Key Technical Features

• I-Beam Ð Rugged welded I-band construction with 3-layer seams.
• Double I-Beam Ð Extra-reinforced, welded double-I-Beam construction with 3-layer seams.
• Duratex Cx3 Ð Premium commercial-grade material optimized for durability, weld strength and UV resistance.
• Tritex Ð Uniquely textured version of our Duratex material adding grip and cooling attributes.
• Interlock 5 Ð 2 sets of secure and tamper-free 5-ring connections using our 2-Step Vario Strap system.
• Halkey-Roberts valves Ð With tamper-proof cap for quick, effective inflation/ deflation.
• PRV Ð Pressure relief valve to help protect against catastrophic over-inflation.
• TRiB Chamber Gauge - Solar powered gauge that allows for continual monitoring of air pressure at a glance.

  Key User Activities

• Climb Ð Numerous, integrated novice and advanced climbing lines.
• Slide Ð Features high-velocity chute-slide feature.
• Jump Ð Exhilarating dedicated jump stations at various heights add jaw-dropping excitement.
• Corner Ð Functions as a critical direction change in the park layout.
• Obstacle Ð Presents an obstacle challenge which adds to the fun.
• Boarding Ð Provides easy boarding access from the water with integrated footsteps on advanced climb lines.

  Technical Specifications

• Max Weight Ð 1200 lb. (544 kg) max weight.
• Material Ð 0.90 mm / 31 oz Cx3 PVC.
• Minimum Distance from Shore Ð 15Õ (4.5 m)
• Minimum Required Total Anchor Weight Ð 8,800 lb. (4000 kg)
• Anchor Rings Ð 4
• Accessory Attachment D-rings Ð 5 each on 2 sides.

  Product Notes

• Weight recommendations are for anchoring in conditions with extreme weather, waves, or other abnormal conditions. Aquaglide recommends contacting a dock and mooring specialist for anchor installation options and assistance.
• The safety of our customers and their guests is our highest priority. Careful thought goes into the design of our aquapark components, connection points and configurations to assure maximum safety and enjoyment. Consequently, Aquaglide Lakefront and Aquapark products are not authorized for use in combination with products or attachments from any other manufacturer. Aquaglide product combinations must be authorized or approved in advance by the manufacturer. Use of Aquaglide products in combination with products from any other manufacturer and/or product arrangements not previously approved by Aquaglide may result in increased risk of entrapment, injury, or death.
