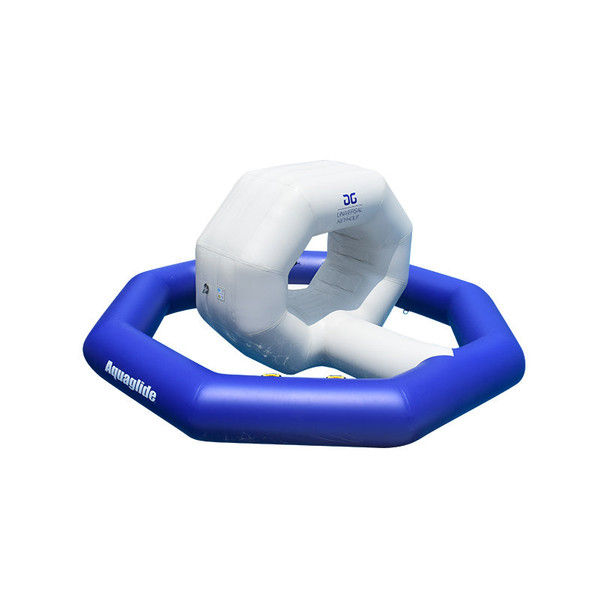

Universal Keyhole

The one-of-a-kind Universal Keyhole is a unique balance feature where guests can choose between threading the needle on the center-beam through the keyhole or walking the perilous perimeter path. Interior boarding tubes and handles help users reboard easily after a splashdown. Connects to any aquapark on up to eight sides using our Interlock connection system.
Key Technical Features

• Tubular Ð Welded structural tube construction with 3-layer seams.
• Double I-Beam Ð Extra-reinforced, welded double-I-Beam construction with 3-layer seams.
• Duratex Cx3 Ð Premium commercial-grade material optimized for durability, weld strength and UV resistance in our signature items.
• Interlock 5 Ð 8 sets of secure and tamper-free 5-ring connections using our 2-Step Vario Strap system.
• Halkey-Roberts valves Ð With tamper-proof cap for quick, effective inflation/ deflation.

  Key User Activities

• Balance Ð Offers a challenging balance element to keep users on their toes.
• Obstacle Ð Presents an obstacle challenge which adds to the fun.
• Hub Ð Serves a central hub connection for numerous pathways.
• Boarding Ð Provides easy boarding access from the water thanks to integrated boarding tubes and handles.

  Technical Specifications

• Max Weight Ð 600 lb. (272 kg) max weight.
• Material Ð 0.90 mm / 31 oz Cx3 PVC.
• Minimum Distance from Shore Ð 10Õ (3.0 m)
• Minimum Required Total Anchor Weight Ð 4,400 lb. (2,000 kg)
• Anchor Rings Ð 4
• Accessory Attachment D-rings Ð 5 each on 8 sides.

  Product Notes

• Weight recommendations are for anchoring in conditions with extreme weather, waves, or other abnormal conditions. Aquaglide recommends contacting a dock and mooring specialist for anchor installation options and assistance.
• The safety of our customers and their guests is our highest priority. Careful thought goes into the design of our aquapark components, connection points and configurations to assure maximum safety and enjoyment. Consequently, Aquaglide Lakefront and Aquapark products are not authorized for use in combination with products or attachments from any other manufacturer. Aquaglide product combinations must be authorized or approved in advance by the manufacturer. Use of Aquaglide products in combination with products from any other manufacturer and/or product arrangements not previously approved by Aquaglide may result in increased risk of entrapment, injury, or death.
