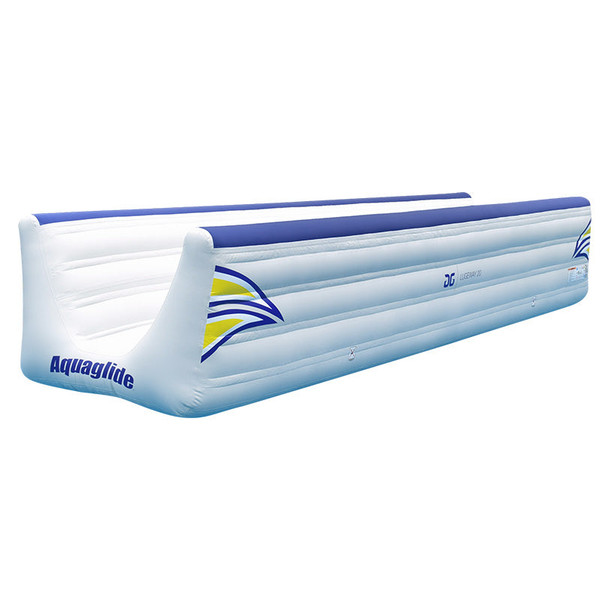

Lugeway 20

This 20-foot straightaway challenges users and adds diversity to any aquapark layout. Built for speed, the Lugeway 20 challenges users to attempt to slide all the way across or works as a transition walkway to other features. The Lugeway 20 connects at both ends using Vario straps and fits any Aquaglide Aquapark Series configuration. The Lugeway is available to two sizes, the Lugeway 10 and the Lugeway 20.
Key Technical Features

• Double I-Beam Ð Extra-reinforced, welded double-I-Beam construction with 3-layer seams.
• Duratex Cx3 Ð Premium commercial-grade material optimized for durability, weld strength and UV resistance.
• Interlock 5 Ð 2 sets of secure and tamper-free 5-ring connections using our 2-Step Vario Strap system.
• Halkey-Roberts valves Ð With tamper-proof cap for quick, effective inflation/ deflation.
• PRV Ð Pressure relief valve to help protect against catastrophic over-inflation.

  Key User Activities

• Slide Ð Features a luge slide element for ultimate enjoyment.
• Obstacle Ð Presents an obstacle challenge which adds to the fun.

  Technical Specifications

• Max Weight Ð 400 lb. (181 kg) max weight.
• Material Ð 0.90 mm / 31 oz Cx3
• Minimum Distance from Shore Ð 10Õ (3.0 m)
• Minimum Required Total Anchor Weight Ð 4,400 lb. (2,000 kg)
• Anchor Rings Ð 4, or 2 with a 2-way bridle.
• Accessory Attachment D-rings Ð 5 each on 2 sides.

  Product Notes

• Weight recommendations are for anchoring in conditions with extreme weather, waves, or other abnormal conditions. Aquaglide recommends contacting a dock and mooring specialist for anchor installation options and assistance.
• The safety of our customers and their guests is our highest priority. Careful thought goes into the design of our aquapark components, connection points and configurations to assure maximum safety and enjoyment. Consequently, Aquaglide Lakefront and Aquapark products are not authorized for use in combination with products or attachments from any other manufacturer. Aquaglide product combinations must be authorized or approved in advance by the manufacturer. Use of Aquaglide products in combination with products from any other manufacturer and/or product arrangements not previously approved by Aquaglide may result in increased risk of entrapment, injury, or death.
